Scott Spark RC SL HMX SL Frame+Fork

Scott Spark RC SL HMX SL Frame+Fork
Color: Red Fade/Black
Size: Select size
Please select options Unavailable

Details

The Spark RC SL is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.

Please note that bike specifications are subject to change without prior notice.

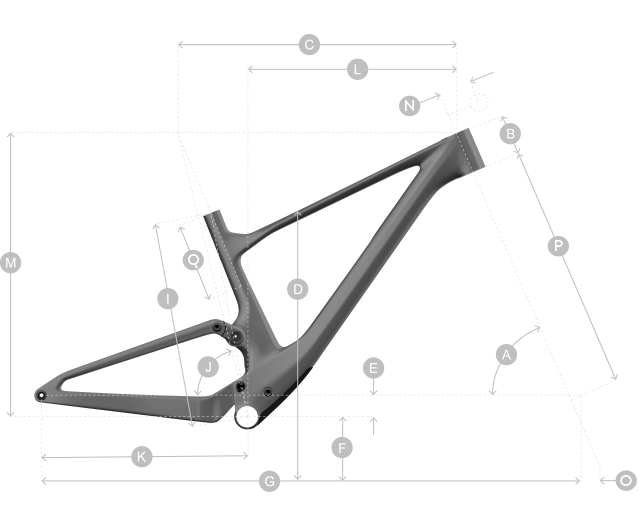

Geometry

Sizes:
FRAME SIZESMALLMEDIUMLARGEX-LARGE
A- HEAD TUBE ANGLE (-0.6° HEADSET SETTING) 67.2 ° 67.2 ° 67.2 ° 67.2 °
B- HEAD TUBE LENGTH 90.0 MM 90.0 MM 105.0 MM 115.0 MM
C- TOP TUBE HORIZONTAL 562.0 MM 590.0 MM 614.0 MM 642.0 MM
D- STANDOVER HEIGHT 758.0 MM 765.0 MM 776.0 MM 799.0 MM
E- BB OFFSET -45.0 MM -45.0 MM -45.0 MM -45.0 MM
F- BB HEIGHT 330.0 MM 330.0 MM 330.0 MM 330.0 MM
G- WHEEL BASE 1,129.0 MM 1,159.0 MM 1,190.0 MM 1,231.0 MM
H- BB CENTER TO TOPTUBE CENTER
I- BB CENTER TO TOP OF SEATTUBE 415.0 MM 440.0 MM 490.0 MM 540.0 MM
J- SEAT ANGLE 75.9 ° 76.1 ° 76.6 ° 76.9 °
K- CHAINSTAY 437.5 MM 437.5 MM 437.5 MM 437.5 MM
L- REACH 411.0 MM 441.0 MM 471.0 MM 501.0 MM
M- STACK 602.5 MM 602.5 MM 616.0 MM 625.0 MM
N- STEM LENGTH 50.0 MM 60.0 MM 70.0 MM 80.0 MM
O- TRAIL 115.0 MM 115.0 MM 115.0 MM 115.0 MM
P- FORK LENGTH 530.0 MM 530.0 MM 530.0 MM 530.0 MM
Q- MAXIMUM SEATPOST INSERTION 150.0 MM 175.0 MM 225.0 MM 275.0 MM
R- CRANK LENGTH 170.0 MM 175.0 MM 175.0 MM 175.0 MM

Specs

Frame Spark RC Carbon HMX SL
Integrated Suspension Technology Flex Pivot / Adjustable head angle
Fork FOX 34 SC Float Factory Air / Kashima FIT4
3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset
Tapered steerer / Lockout / Reb. Adj. 120mm travel
Rear Shock FOX NUDE 5 Factory EVOL Trunnion SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
DPS / Kashima / Reb. Adj. T165X45mm
Accessories & Extras Twinloc 2 Remote Control Shifter Kit
Syncros - Acros Pro Headset System
Syncros Carbon Seatpost and Fraser iC Handlebar
Syncros rear axle

* Subject to change without notice.

Part Numbers

Option UPC MPN
Red Fade/Black / Small 192820817842 292047006
Red Fade/Black / Medium 192820817859 292047008
Red Fade/Black / Large 192820817866 292047010
Red Fade/Black / X-Large 192820817873 292047012
