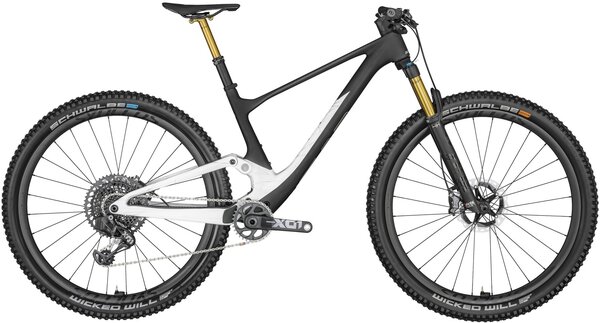

Scott Spark 900 Tuned AXS

Scott Spark 900 Tuned AXS
  • Color: Black/White
Color: Black/White
Size: Select size
Please select options Unavailable

Details

When you think of the perfect mountain bike, what comes to mind? For us, it's the all new Spark 900 Tuned AXS. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.

KEY FEATURES
- Spark Carbon HMX Frame
- FOX 34 Float Factory 130mm Fork
- FOX Nude 5T EVOL, TwinLoc, 120mm
- SRAM X01 AXS Eagle 12 Speed
- Shimano XTR 4 Piston Disc Brakes
- Syncros Silverton 1.0 Carbon Wheels
- Schwalbe Wicked Will Tires
- FOX Dropper Post, Syncros CF Parts

Geometry

Sizes:
SmallMediumLargeX-Large
A HEAD TUBE ANGLE 65.8 ° 65.8 ° 65.8 ° 65.8 °
B HEAD TUBE LENGTH 90.0 MM 90.0 MM 105.0 MM 115.0 MM
C TOP TUBE HORIZONTAL 561.0 MM 589.0 MM 613.0 MM 641.0 MM
D STANDOVER HEIGHT 759.0 MM 767.0 MM 778.0 MM 801.0 MM
E BB OFFSET -43.5 MM -43.5 MM -43.5 MM -43.5 MM
F BB HEIGHT 331.5 MM 331.5 MM 331.5 MM 331.5 MM
G WHEEL BASE 1,145.0 MM 1,174.0 MM 1,205.0 MM 1,236.0 MM
I BB CENTER TO TOP OF SEATTUBE 415.0 MM 440.0 MM 490.0 MM 540.0 MM
J SEAT ANGLE 75.7 ° 75.9 ° 76.4 ° 76.7 °
K CHAINSTAY 437.5 MM 437.5 MM 437.5 MM 437.5 MM
L REACH 410.0 MM 440.0 MM 470.0 MM 500.0 MM
M STACK 607.5 MM 607.5 MM 617.7 MM 627.0 MM
N STEM LENGTH 50.0 MM 60.0 MM 60.0 MM 70.0 MM
0 TRAIL 107.0 MM 107.0 MM 107.0 MM 107.0 MM
P FORK LENGTH 540.0 MM 540.0 MM 540.0 MM 540.0 MM
Q MAXIMUM SEATPOST INSERTION 150.0 MM 175.0 MM 225.0 MM 275.0 MM
R CRANK LENGTH 170.0 MM 175.0 MM 175.0 MM 175.0 MM

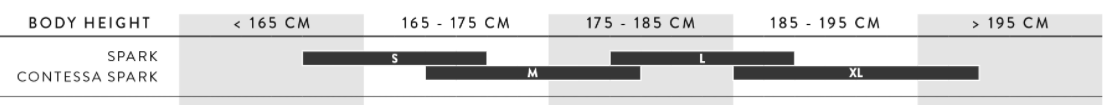

Sizing

Specs

Frame Spark Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork FOX 34 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 130mm travel
Rear Shock FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. Travel 120-80-Lockout / T165X45mm
Wheels Syncros Silverton 1.0-30 CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss Ratchet Hubs / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires Front: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Rear: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip
Bottom Bracket SRAM DUB PF 92 MTB Wide / shell 41x92mm
Crankset SRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T
Shifters SRAM GX Eagle AXS Rocker Controller
Rear Derailleur SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System
Cassette/Freewheel SRAM X01 XG1295 / 10-52 T
Chain SRAM CN X01 Eagle
Brakes Shimano XTR M9120 4 Piston Disc
Rotors Shimano RT-MT900 CL / F&R 180mm
Handlebars Syncros Fraser iC SL DC Carbon 0° rise / back sweep 8° / mini Rise / 760mm Syncros Pro lock-on grips
Headset Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost FOX Transfer Factory Dropper Post Kashima 31.6mm / S & M size 125mm / L & XL size 150mm
Saddle Syncros Tofino 1.5 Regular Titanium rails
Pedals Sold separately
Accessories & Extras Remote system: SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes, SRAM AXS Powerpack, SRAM TyreWiz

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Black/White / Small 192820594255 286268006
Black/White / Medium 192820594262 286268008
Black/White / Large 192820594279 286268010
Black/White / X-Large 192820594286 286268012
