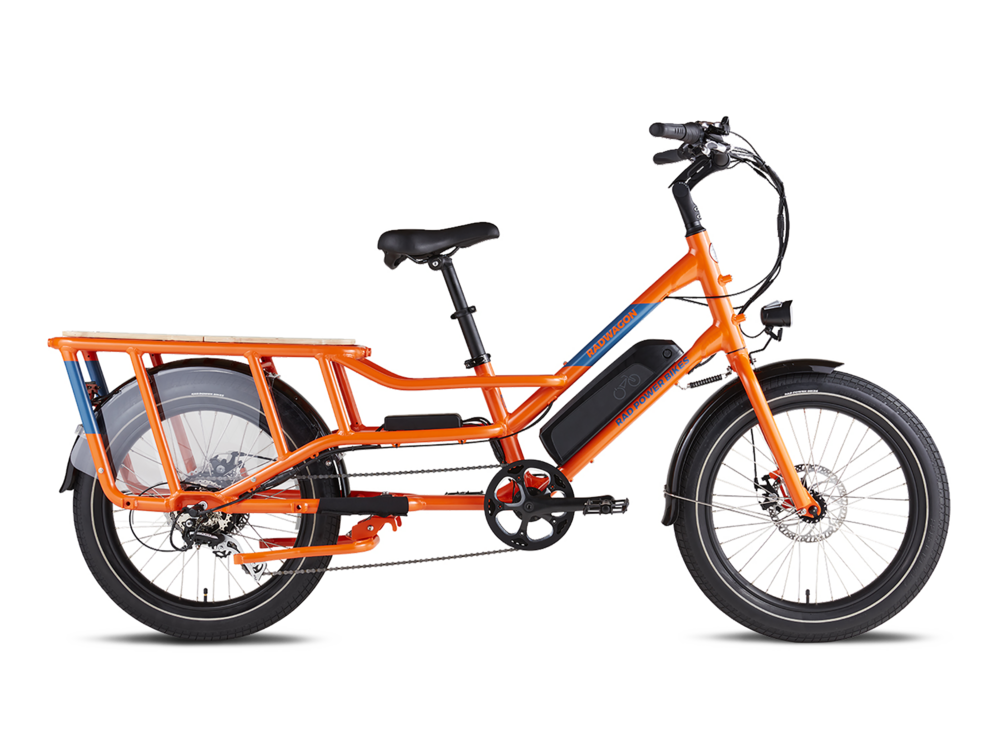

Rad Power Bikes RadWagon 4
Details
Holds the kiddos. Plus groceries.
This next-level hauler is perfect for taking the kids across town or loading up at the hardware store. The electric cargo bike's elongated frame and lower center of gravity provide stable, reliable rides, even when you’re taking full advantage of the 350 lb. payload capacity. Take a passenger (or two!) for a spin. Our family-friendly accessories get the whole gang outside.
Rider Heights | 5'1" - 6'4" (Approx. bike inseam between 24.5" and 36.25") |
---|---|
Bike Weight | Total: 76.7 lb., 69 lb. with battery removed |
Payload | 350 lb. |
Rear Rack | 120 lb. |
Running Boards Payload | 30 lb per side (optional accessory) |
Handlebar Height | 43.5" - 47.2 in" |
Reach | 21.6" - 25" (550 mm - 635 mm) |
Seat Height | From ground: 31.5" - 41.3"/From pedal bottom stroke: 27" - 37" |
Standover Height | 23.6" (60 cm) |
Total Length | 78.7" (2000 mm) |
Wheelbase | 53.76" (1365.7 mm) |
Seat Tube Length | 13.5" (345 mm) |
Seatpost Diameter | 34.9 mm |
Specs
Motor | Rear hub 750W Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
---|---|
Pedals | Forged aluminum platform with reflectors, standard 9/16" x 20 TPI threading |
Battery | 14 Ah 672 Wh external battery, tested by ACT compliant to UL 2271 |
Charger | 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Controller/Display | Backlit LCD. See Display section below for details. |
Fork | Rigid steel fork for 22" wheel |
Stem | Satori EZ3 AHS toolless adjustable handlebar stem with built in top cap bolt. Reach, height (stack), and handlebar angle adjustment (80 degrees) with press of a button/lever lift. |
Frame | Aluminum |
Tires | Rad Power Bikes, custom 22" x 3" |
Brakes | Tektro Aries (MD-M300) |
Saddle | Plush with lifting handle |
Crankset | 46T with dual sided chain ring cover, 170 mm crank arms |
Seatpost | Telescoping, max length = 375 mm x 34.9 mm |
Shifters | Shimano, 7-speed thumb shifter |
Handlebars | Swept-back, RPB custom |
Tape/Grips | Ergonomic rubber comfort grips |
Rear Derailleur | 7-speed Shimano |
Accessories & Extras |
Auto-on feature Front: Rad Power Bikes branded standard LED 20 lux (~200 Lumens) Rear: Integrated taillight with brake light indicator functionality |
Cassette/Freewheel | 7-speed freewheel, 11-34T |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Orange / One Size / 22-inch | 102-00016 |
